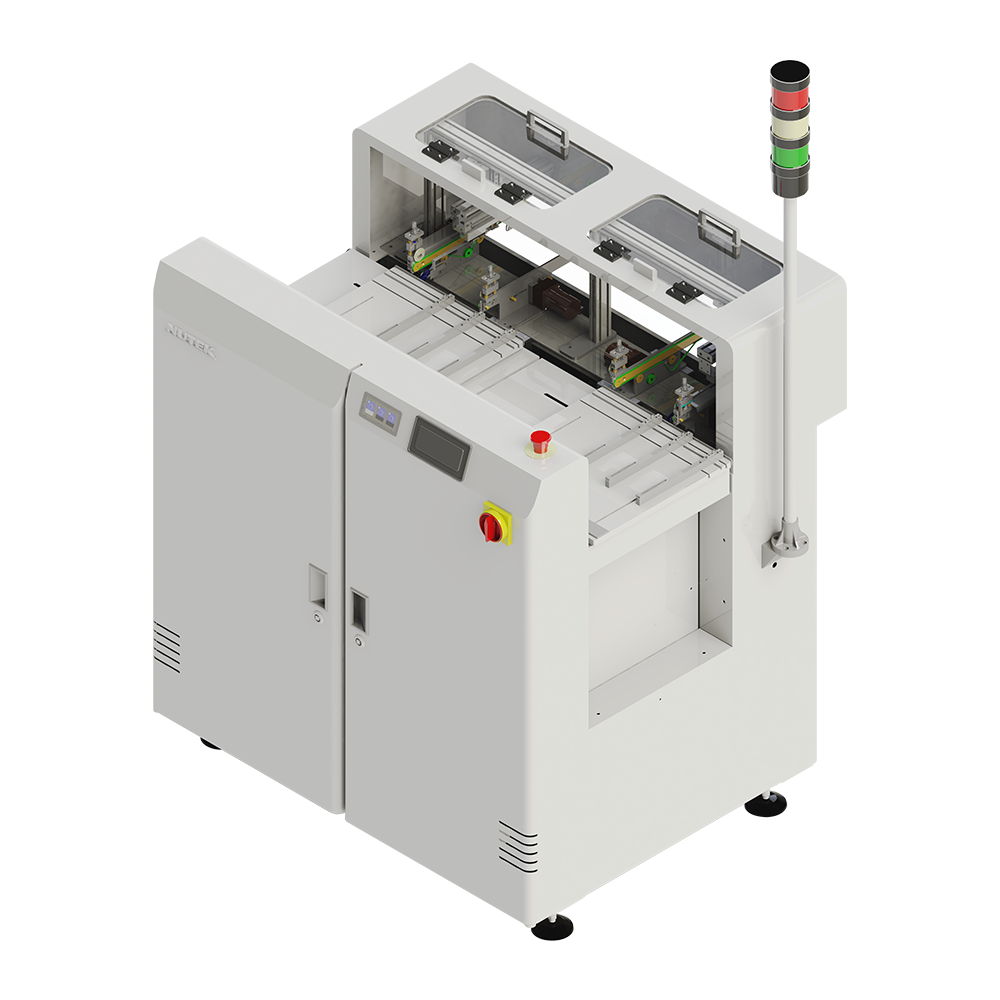

Dual Lane Advanced Platform Unloader
The Dual Lane Advanced Platform Unloader is used for unloading of substrates, leadframes or carriers in dual lane production line.
Features
- Cleanroom 10000 (ISO 7)
- Touch screen panel enables swift adjustment for various types of magazines in operation
- Multi-magazine capability (quantity depends on dimensions of magazines)
- Programmable magazine parameter settings
- Both lanes can operate independently
- Suitable for ‘high-mix’, ‘low-volume’ operations
- Servo motor drive for precise indexing
- Pneumatic pusher with regulated pressure
- SMEMA compatible
- AIV/AMR integration (Optional)
- OHT/AMHS integration (Optional)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM4410DUM | M | 865 x 1100 x 1210 | X1 = 149, X2 = 164 mm | 250 kg |
