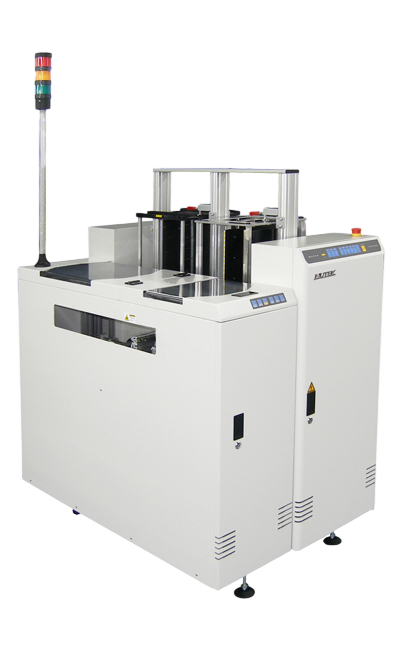

Dual Magazine Loader/Unloader
This unit is used for loading or unloading of PCBs in dual track PCB assembly lines.
Features
- Sturdy and stable design
- User friendly ‘soft touch’ LED membrane control panel
- Toggle level clamps provided for magazine alignment
- Pneumatic pusher with regulated pressure
- High throughput with short magazine change-over time
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM2000LM (Loader) | M | 1080 x 1355 x 1330 mm | 380 mm | 330 kg |
| NTM2000LL (Loader) | L | 1420 x 1680 x 1330 mm | 380 mm | 380 kg |
| NTM2000UM (Unloader) | M | 880 x 1350 x 1330 mm | 380 mm | 330 kg |
| NTM2000UL (Unloader) | L | 1140 x 1680 x 1330 mm | 380 mm | 380 kg |
