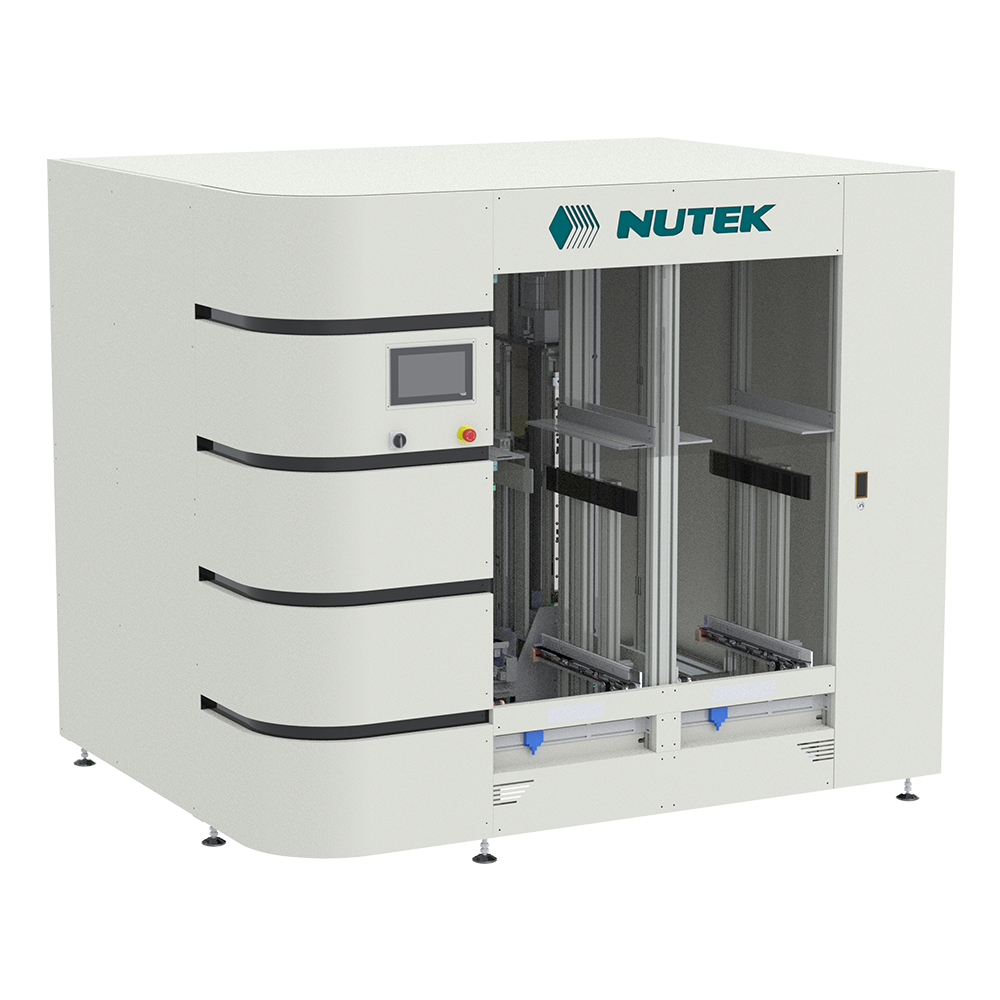

Magazine Storage System
The Magazine Storage System is used to store magazines manually or by an AGV automatically
Features
- 10” touchscreen panel
- Operating modes: First In First Out (FIFO), Last In First Out (LIFO), by AGV or manually
- Frequency inverter controlled lifting motion
- On screen display of magazine capacity status
- Preset timer for magazine buffering time
- Programmable product setting
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA 680ST | 2400 x 1875 x 2100 mm | 735 mm | 800 kg |
