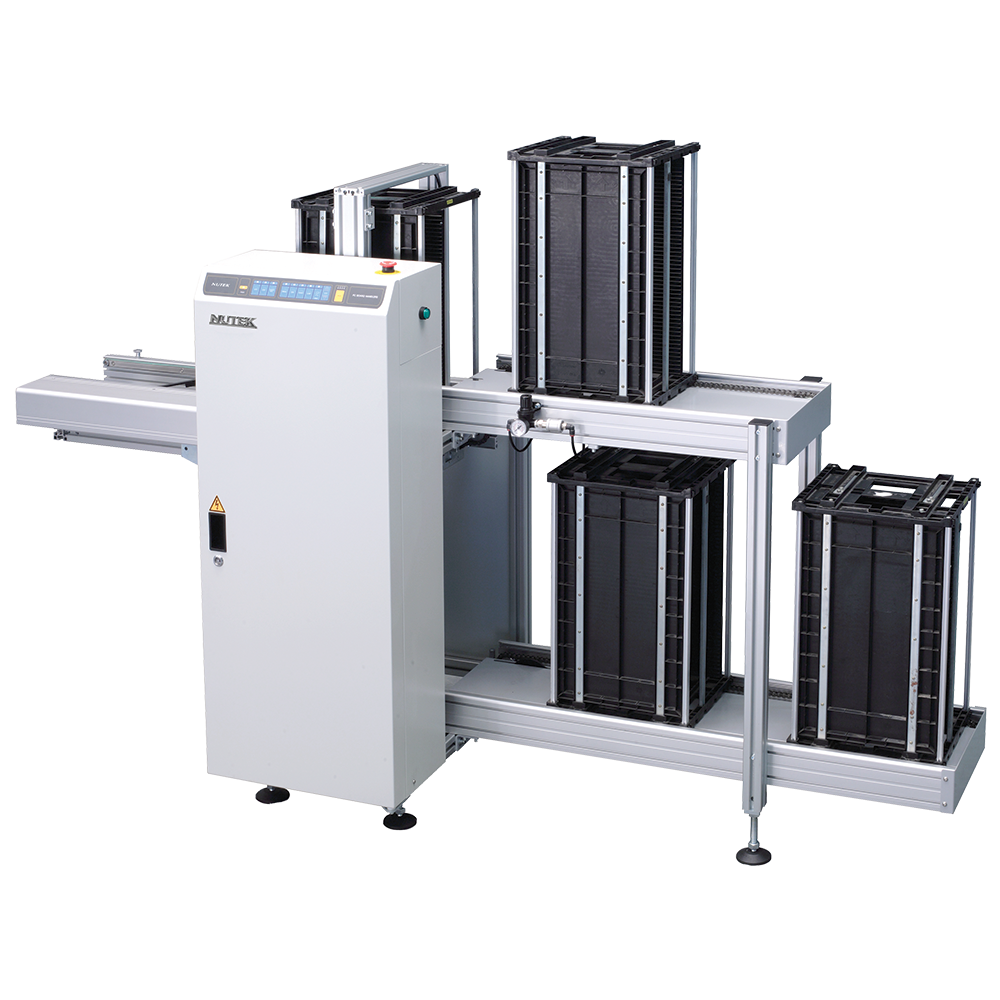

MFC Automatic Unloader
This unit is used for unloading of PCBs.
Features
- Includes pusher conveyor
- Adjustable pusher position
- Pneumatic pusher’s pressure regulated
- Sturdy and stable design
- User friendly ‘soft touch’ LED membrane control panel
- Pneumatic clamps provided for magazine alignment
- High throughput with short magazine change-over time
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| MFC0100UM | M | 2400 x 790 x 1330 mm | 377 mm | 180 kg |
| MFC0100UL | L | 3380 x 940 x 1330 mm | 388 mm | 280 kg |
