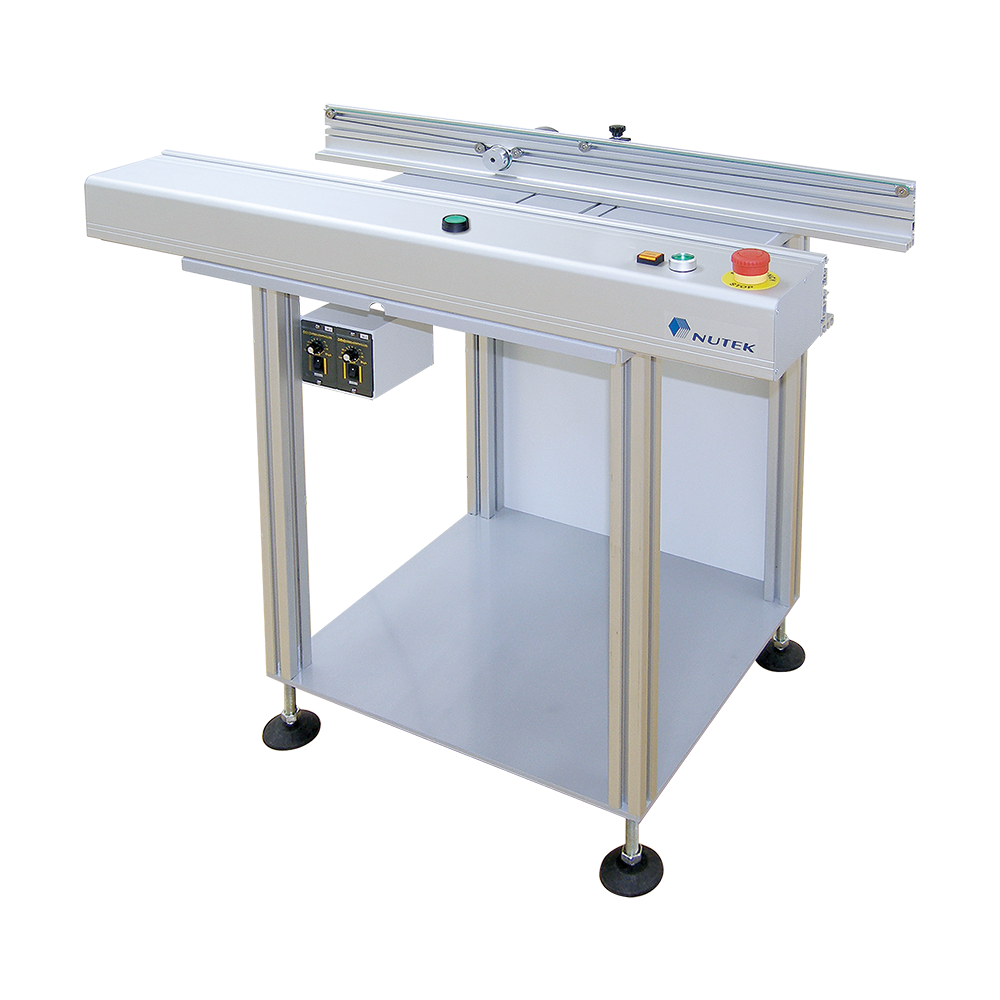

MFC Inspection Conveyor (500 & 1000mm)
The Inspection Conveyor is used as a visual inspection station for operators between SMT machines or board handling units.
Features
- Modular design
- Stability enhanced by ‘robust design’
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- PCB inspection mode and bypass mode provided
- Multi-zone concept available upon request
- Different lengths available upon request
- Variable speed control
- SMEMA compatible
- Patented (SG Patent No: 91261)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| MFC0501-M-500 | M | 500 x 475 x 985 mm | 142 mm | 30 kg |
| MFC0501-L-500 | L | 500 x 635 x 985 mm | 142 mm | 35 kg |
| MFC0501-M-1000 | M | 1000 x 475 x 985 mm | 142 mm | 50 kg |
| MFC0501-L-1000 | L | 1000 x 635 x 985 mm | 142 mm | 55 kg |
