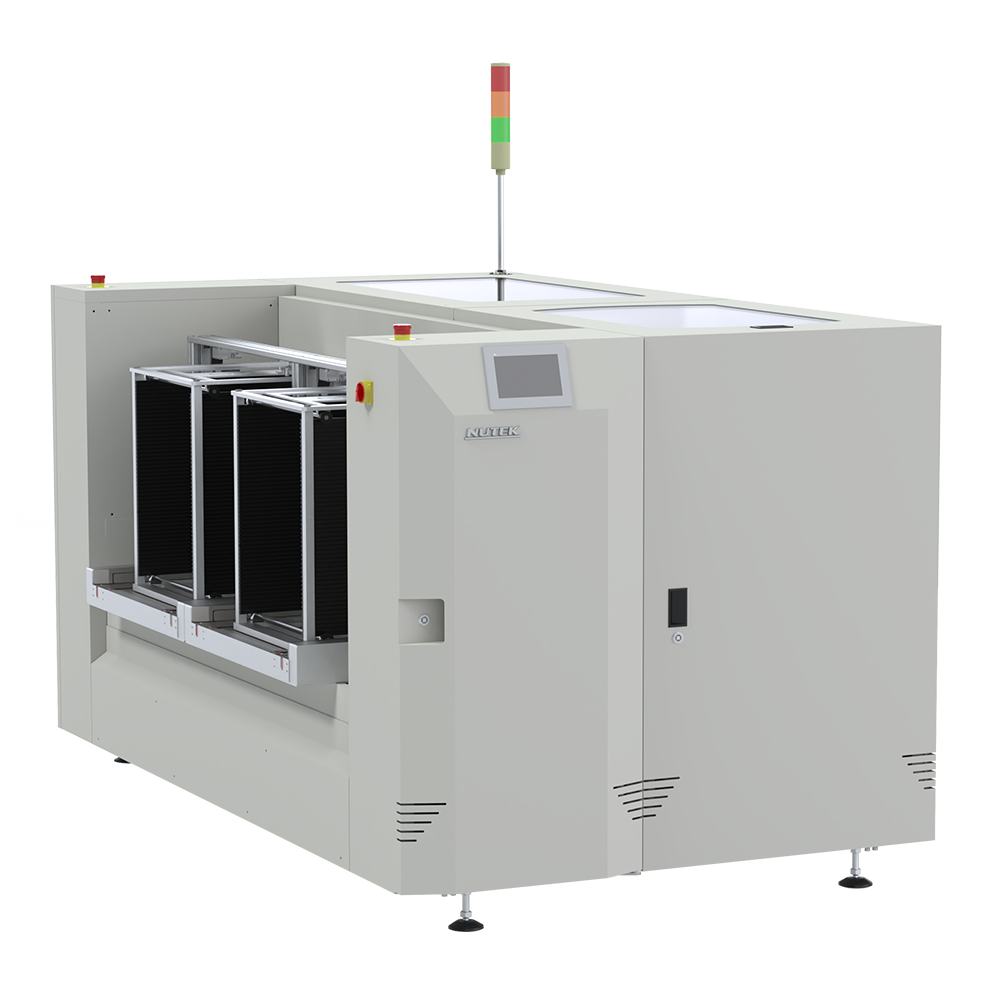

The NTA Dual Magazine Line Loader (AIV/AGV ready) loads PCB to downstream machine. The shuttle conveyor indexes to the transfer slot, the PCB is then being pulled out from the magazine by a puller in the shuttle conveyor. The shuttle conveyor moves to the transfer height of the downstream machine and transfers the PCB downstream. This machine is specially suitable to be used in Dual Lane production line and is able to work with an AIV/AGV to load & unload magazines.

Features

• 7” touchscreen panel
• Sturdy and stable design
• Magazine alignment by upper clamping
• Stationary magazine platform enable loading/unloading by AGV
• Integrated servo motor driven lifting and traversing conveyor
• Servo motor driven width adjustable output conveyor
• Pneumatic puller’s pressure regulated
• Manually adjustable puller position
• Pneumatic controlled shutter door between magazine lifter and traverser
• Programmable magazine and product setting
• User management function allow user level access control
• Ethernet port for network interface
• Towerlight display for machine status
• Industry 4.0 ready
• OPC UA ready
• CANOpen communication ready
