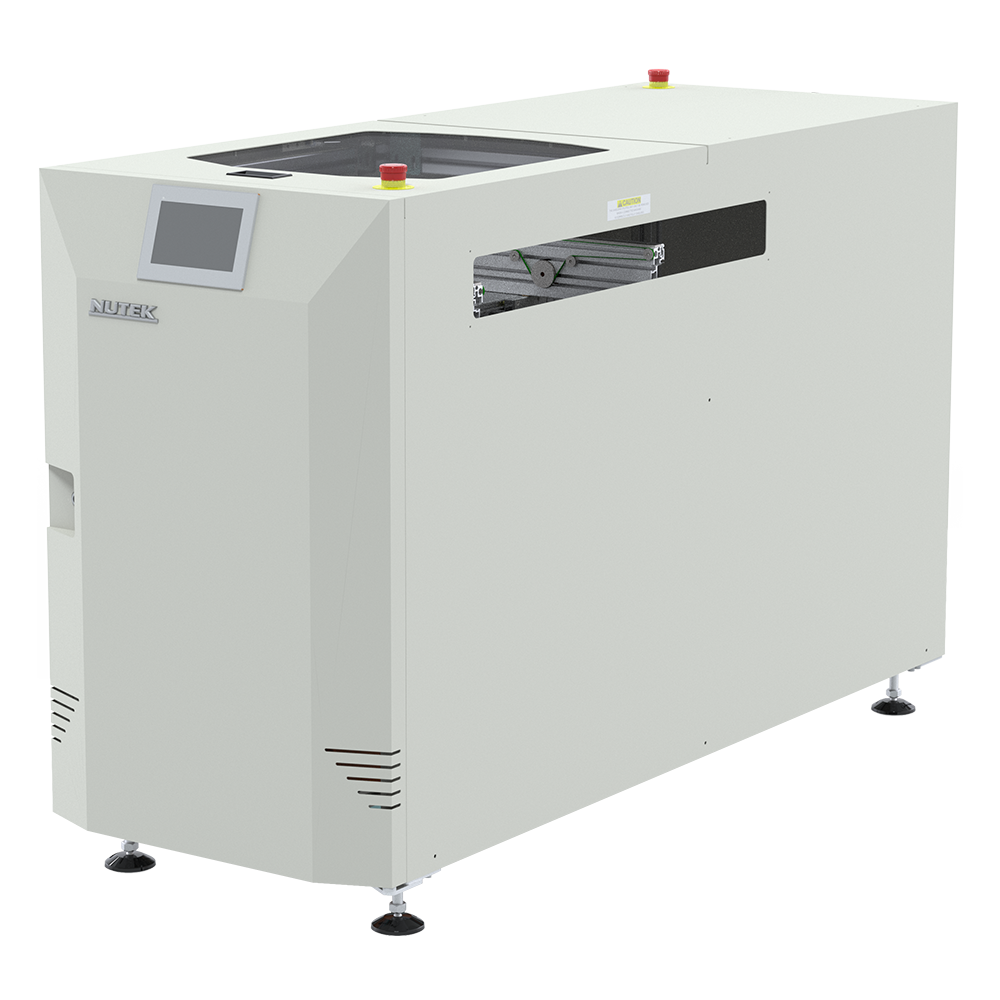

NTA Traverser/Shuttle Conveyor
The NTA Traverser/Shuttle Conveyor is used to redirect PCB flow into different channels in a production line.
Features
- Surrounded with covers to provide highest level of safety
- 7” touchscreen panel
- Swift, smooth and precise operations using servo motor
- PCB traffic flows can be customised
- Servo motor controlled width adjustment
- Programmable product setting
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0910TVM | M | 500 x 1750 x 1130 mm | 256 mm | 180 kg |
| NTA0910TVXL | XL | 653 x 1750 x 1130 mm | 256 mm | 240 kg |
