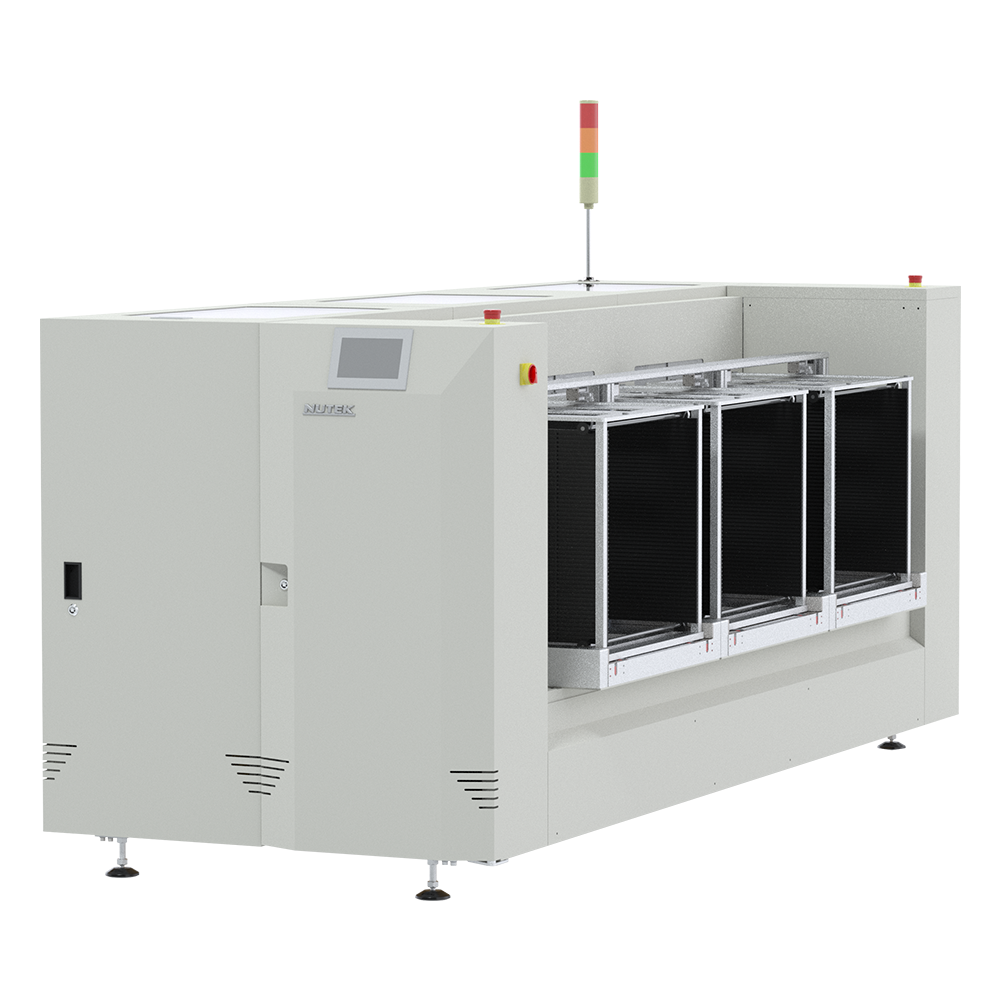

The Triple Magazine Line Unloader (AGV/AIV ready) unload PCB from upstream machine. The shuttle conveyor receives PCB from upstream machine and a pusher cylinder pushes the PCB into the magazine. It can be used for good or bad board separation function also. This machine is able to work with an AGV/AIV to load & unload magazines and configurable for Dual Lane production line.

Features

• 7” touchscreen panel
• Sturdy and stable design
• Magazine alignment by upper clamping
• Stationary magazine platform enables loading/unloading by AGV/AIV
• Integrated servo motor driven lifting and traversing conveyor
• Servo motor driven width adjustable input conveyor
• Pneumatic pusher’s pressure regulated
• Manually adjustable pusher position
• Pneumatic controlled shutter between magazine lifter and shuttle conveyor
• Magazine’s capacity threshold signal
• Good/Bad board separation function
• Programmable magazine and product parameter
• User management function allow user level access control
• Ethernet port for network interface
• Towerlight display for machine status
• Industry 4.0 ready
• OPC UA ready
• CANOpen communication ready
