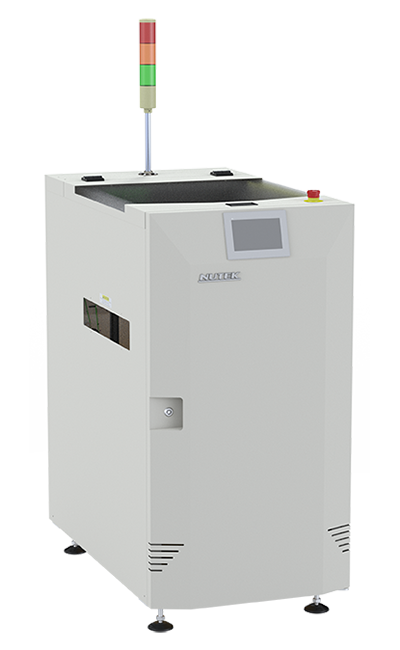

The NTA Bare Board Loader is used to load bare PCBs to downstream machine. The PCB will be lifted up by suctions pad and placed onto the conveyor. The machine also functions as a linkage between downstream machine when in pass through mode. The Pass Through mode is specially applicable to double sided SMT process.
| Model No. | NTA0210BMBP |
| Size | M |
| Machine Dimension (mm) L x W x H | 500 x 935 x 1330 mm |
| Fixed Point to Front Dimension (X) | 258 mm |
| Weight (Approximately) | 110 kg |
| Model No. | NTA0210BXLBP |
| Size | XL |
| Machine Dimension (mm) L x W x H | 653 x 1135 x 1330 mm |
| Fixed Point to Front Dimension (X) | 258 mm |
| Weight (Approximately) | 160 kg |
