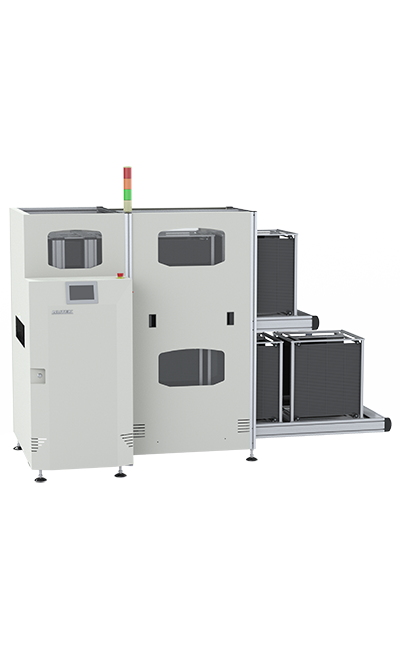

The NTA Multi Magazine Line Unloader works together with a Pusher Conveyor. Once receiving a PCB from upstream machine, the Pusher Conveyor will push the PCB into the magazine. The lifter in the NTA Multi Magazine Line Unloader will then descend to the next empty slot to standby for next PCB.
| Model No. | NTA0110UM |
| Size | M |
| Machine Dimension (mm) L x W x H | 2010 x 995 x 1700 mm |
| Fixed Point to Front Dimension (X) | 405 mm |
| Weight (Approximately) | 235 kg |
| Model No. | NTA0110UXL |
| Size | XL |
| Machine Dimension (mm) L x W x H | 2535 x 1220 x 1700 mm |
| Fixed Point to Front Dimension (X) | 405 mm |
| Weight (Approximately) | 400 kg |
