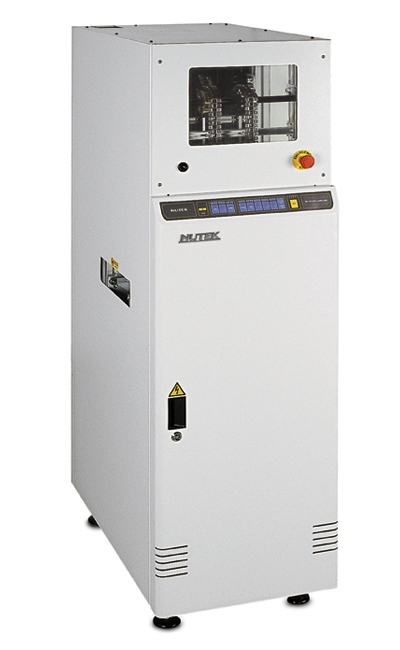

LIFO Vertical Buffer

Features

  • User friendly ‘soft touch’ LED membrane control panel
  • Last In First Out (LIFO) and pass through operating modes
  • Threshold system provided
  • Smooth and parallel width adjustment (leadscrew)
  • Small machine footprint
  • SMEMA compatible

Description

This unit is used as a buffer between SMD machines.

Specifications

Model No.NTM1300-M
SizeM
Machine Dimension (mm)
L x W x H
500 x 885 x 1730 mm
Fixed Point to Front
Dimension (X)
260 mm
Weight
(Approximately)
250 kg
Model No.NTM1300-L
SizeL
Machine Dimension (mm)
L x W x H
653 x 1040 x 1730 mm
Fixed Point to Front
Dimension (X)
260 mm
Weight
(Approximately)
300 kg
