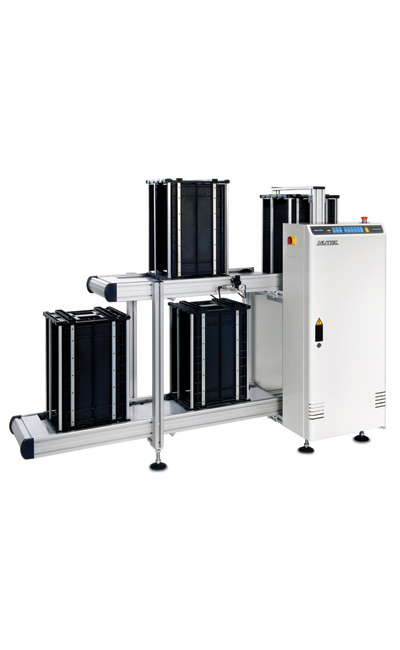

Automatic Loader/Unloader

Features

Sturdy and stable design
User friendly ‘soft touch’ LED membrane control panel
Pneumatic clamps provided for magazine alignment
Pneumatic pusher’s pressure regulated
High throughput with short magazine change-over time
SMEMA compatible

Description

This unit is used for loading or unloading of PCBs.

Specifications

Model No.	Size	Machine Dimension (mm) L x W x H	Fixed Point to Front Dimension (X)	Weight (Approximately)
NTM0100LM (Loader)	M	1870 x 750 x 1330	380 mm	180 kg
NTM0100LL (Loader)	L	2545 x 970 x 1330	395 mm	250 kg
NTM0100UM (Unloader)	M	1870 x 750 x 1330	380 mm	180 kg
NTM0100UL (Unloader)	L	2545 x 970 x 1330	395 mm	250 kg

Model No.	NTM0100LM (Loader)
Size	M
Machine Dimension (mm) L x W x H	1870 x 750 x 1330
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	180 kg

Model No.	NTM0100LL (Loader)
Size	L
Machine Dimension (mm) L x W x H	2545 x 970 x 1330
Fixed Point to Front Dimension (X)	395 mm
Weight (Approximately)	250 kg

Model No.	NTM0100UM (Unloader)
Size	M
Machine Dimension (mm) L x W x H	1870 x 750 x 1330
Fixed Point to Front Dimension (X)	380 mm
Weight (Approximately)	180 kg

Model No.	NTM0100UL (Unloader)
Size	L
Machine Dimension (mm) L x W x H	2545 x 970 x 1330
Fixed Point to Front Dimension (X)	395 mm
Weight (Approximately)	250 kg
