This unit is used for loading of PCBs to the production line.

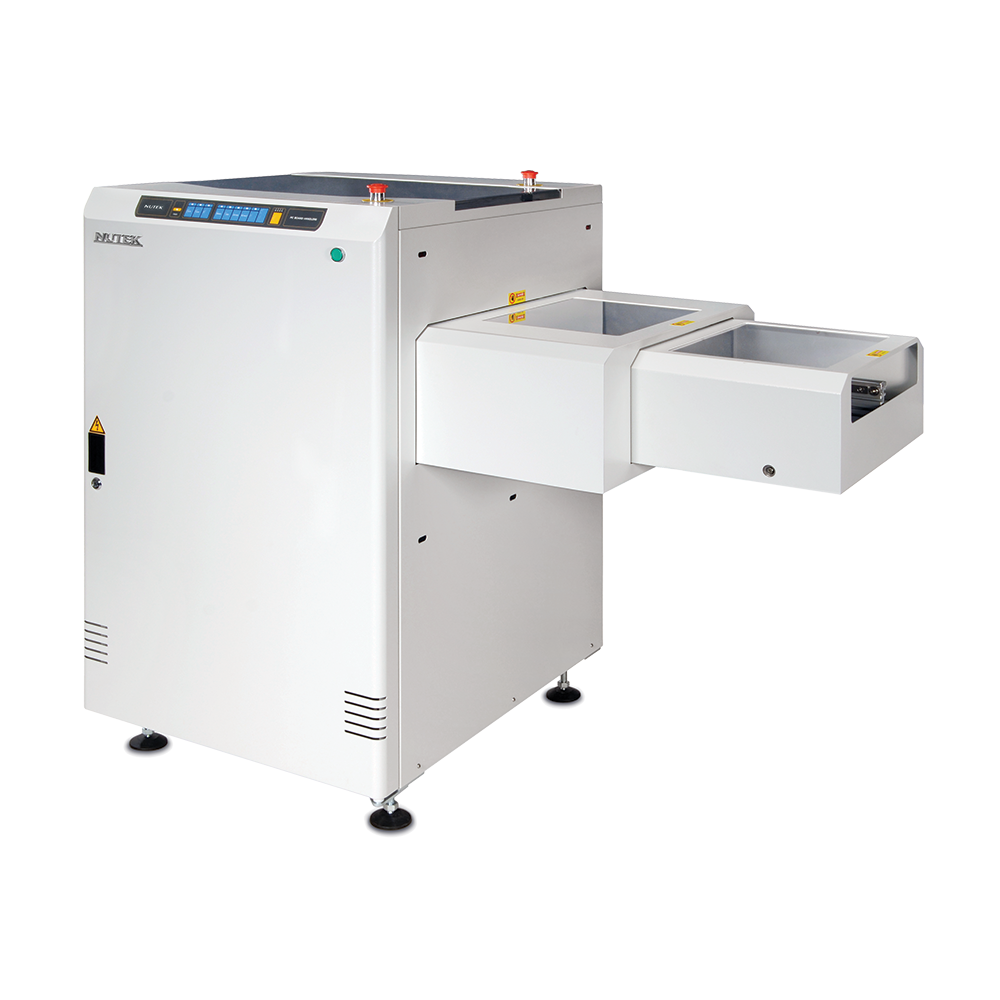

Telescopic Gate Conveyor (Normally Closed)
This unit is used when a passage way is required in a production line (fully automatic).
Features
- User friendly ‘soft touch’ LED membrane control panel
- Passage way ‘Normally Closed’ (745 mm)
- Swift and smooth retraction/extension of conveyor (frequency inverter controller)
- Additional built-in buffer zone
- Safety sensor installed to enhance safety
- Smooth and parallel width adjustment (leadscrew)
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM3600-M | M | 1500 x 780 x 1330 mm | 292 mm | 230 kg |
| NTM3600-L | L | 1500 x 930 x 1330 mm | 292 mm | 250 kg |
