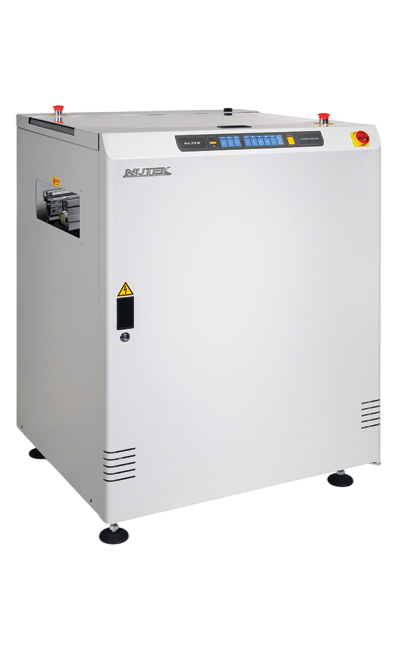

Turn Conveyor/Diverter

This unit is used to redirect PCBs in a production line.

Features

  • Equipped with built-in torque limiter to ensure highest level of safety
  • ‘Top safety cover’ can be opened for easy access to hardware during maintenance
  • User friendly ‘soft touch’ LED membrane control panel
  • Smooth and precise rotation
  • Transfer gap between conveyors is minimised
  • PCB traffic flows can be customised
  • Smooth and parallel width adjustment (leadscrew)
  • SMEMA compatible

Specification

Model No. Size

Machine Dimension (mm)


L x W x H

Fixed Point to Front

Dimension (X)

Weight


(Approximately)
NTM1100LM M 795 x 795 x 1100 mm 272 mm 160 kg
NTM1100LL L 875 x 875 x 1100 mm 234 mm 170 kg
NTM1100IM M 795 x 795 x 1100 mm 272 mm 160 kg
NTM1100IL L 875 x 875 x 1100 mm 234 mm 170 kg
NTM1100TM M 795 x 795 x 1100 mm 272 mm 160 kg
NTM1100TL L 875 x 875 x 1100 mm 234 mm 170 kg
NTM1100XM M 795 x 795 x 1100 mm 272 mm 160 kg
NTM1100XL L 875 x 875 x 1100 mm 234 mm 170 kg
