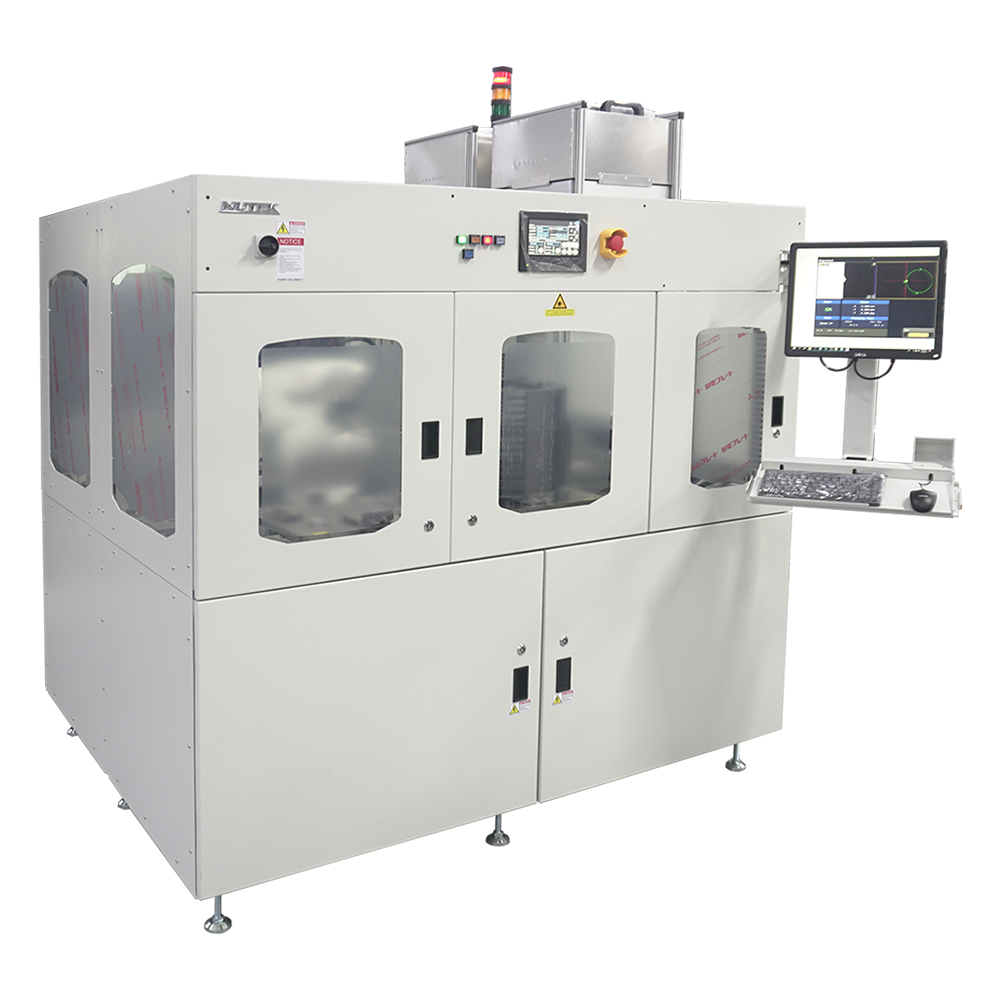

Automated Wafer Handler
The Automated Wafer Handler is used for wafer sorting, wafer mapping, wafer loading & unloading, and wafer aligning.
Features
- Cleanroom Class 1000 (ISO 6)
- HEPA filter
- Automated wafer handling effector arm
- Interchangable end effector arm
- Wafer cassette slot mapping
- Wafer aligner
- User friendly HMI touch screen
- SECS/GEM communication (Optional)
- SEMI S2/S8 compatibility (Optional)
- Wafer inverting option (Optional)
- External stand-alone wafer load port to support AIV/AGV loading or unloading (Optional)
Specification
| Model No. |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM8030W | 1800 x 2010 x 2020 mm | 545 mm | 920 kg |
