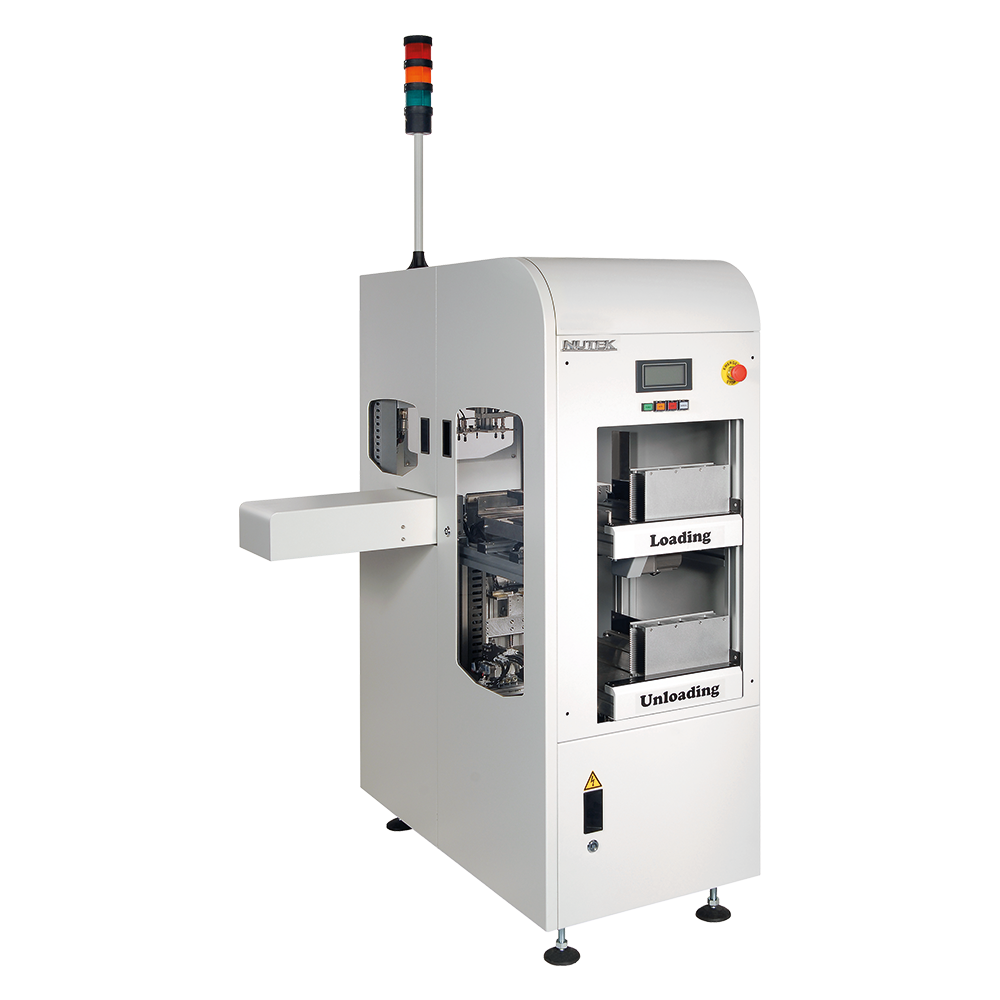

Stack Leadframe/Magazine Loader
The Stack Leadframe/Magazine Loader is used for loading of substrates, leadframes or carriers.
Features
- Cleanroom 10000 (ISO 7)
- Applicable to various substrates, leadframes or carriers
- Applicable to handle magazine of various sizes
- ‘Servo Control’ lifting/traversing motion
- High speed and precise indexing
- Easy loading or unloading of magazines
- Programmable magazine parameter settings
- Operation selectable between magazine or stack
- User friendly touch screen panel
- Fast product change-over cycle
- SMEMA compatible
- AIV/AMR integration (Optional)
- OHT/AMHS integration (Optional)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM4413LM | M | 875 x 1135 x 1570 mm | 630 mm | 340 kg |
