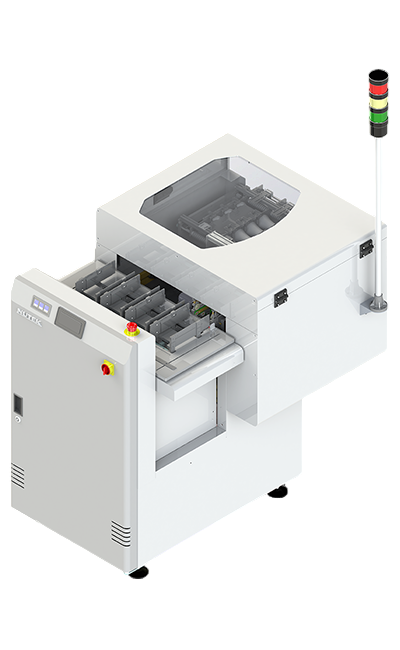

Multiple Lane Advanced Platform Unloader
The Multiple Lane Advanced Platform Unloader is used for unloading of substrates, leadframes or carriers in multiple lane production line.
Features
- Cleanroom 10000 (ISO 7)
- Touch screen panel enables swift adjustment for various types of magazines in operation
- Multi-magazine capability (quantity depends on dimensions of magazines)
- Programmable magazine parameter settings
- Suitable for ‘high-mix’, ‘low-volume’ operations
- Servo motor drive for precise indexing
- Pneumatic pusher with regulated pressure
- SMEMA compatible
- Integrated traverser to divert product flow to downstream (Optional)
- AIV/AMR integration (Optional)
- OHT/AMHS integration (Optional)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM4410MUM | M | 1325 x 1000 x 1185 | 175 mm | 242 kg |
