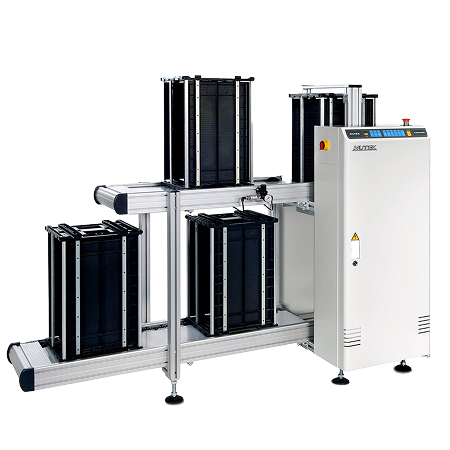

Automatic Loader/Unloader
This unit is used for loading or unloading of PCBs.
Features
- Sturdy and stable design
- User friendly ‘soft touch’ LED membrane control panel
- Pneumatic clamps provided for magazine alignment
- Pneumatic pusher with regulated pressure
- High throughput with short magazine change-over time
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Machine Dimension (MM) L x W x H |
Weight (Approximately) |
| NTM0100LM (Loader) | M | 1870 x 750 x 1330 | 380 mm | 180 kg |
| NTM0100LL (Loader) | L | 2545 x 970 x 1330 | 395 mm | 250 kg |
| NTM0100UM (Unloader) | M | 1870 x 750 x 1330 | 380 mm | 180 kg |
| NTM0100UL (Unloader) | L | 2545 x 970 x 1330 | 395 mm | 250 kg |
Related Products
-
-

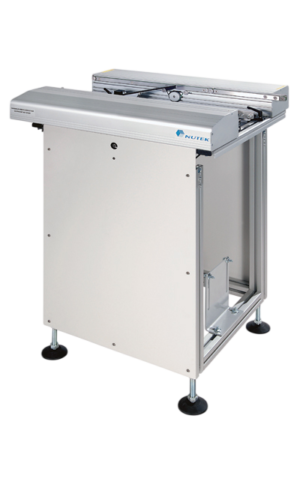

This unit is used for transferring of PCBs/pallets from the soldering machine. -

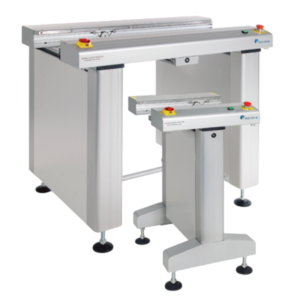

This unit is used to link between SMD machines or board handling units. -
