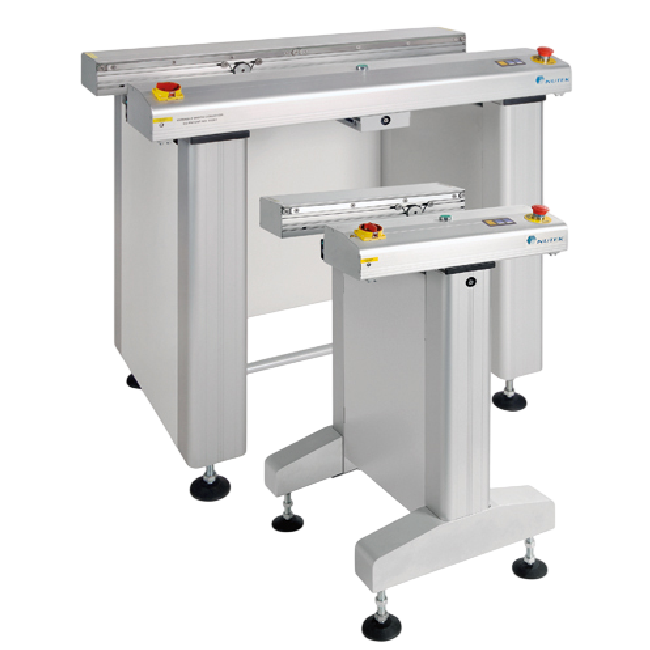

Inspection Conveyor (500 & 1000mm)
This unit is used as a visual inspection station between SMD machines.
Features
- User friendly ‘soft touch’ LED membrane control panel
- Modular design
- Stability enhanced by ‘robust design’
- Laser carved stainless steel side guides for superior quality and durability
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- Multi-zone concept available upon request
- Different lengths available upon request
- Variable speed control
- SMEMA compatible
- Patented (SG Patent No.: 91261)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM0501-M-500-1 | M | 500 x 570 x 985 mm | 168 mm | 45 kg |
| NTM0501-L-500-1 | L | 500 x 727 x 985 mm | 168 mm | 50 kg |
| NTM0501-M-1000-1 | M | 1000 x 570 x 985 mm | 168 mm | 70 kg |
| NTM0501-L-1000-1 | L | 1000 x 727 x 985 mm | 168 mm | 80 kg |
