This unit is used for loading of PCBs to the production line.

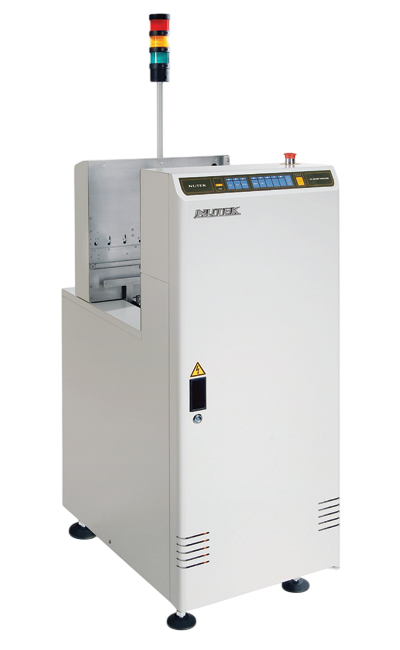

Push-up Stacker
This unit is used for restacking of PCBs from the production line.
Features
- User friendly ‘soft touch’ LED membrane control panel
- Pass through mode provided
- Smooth and parallel width adjustment (leadscrew)
- Small machine footprint
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM2100-M | M | 500 x 905 x 1330 mm | 234 mm | 120 kg |
| NTM2100-L | L | 500 x 905 x 1330 mm | 234 mm | 140 kg |
Related Products
-
-
Nutek Reject Inspection Conveyor is used for visual inspection without interrupting the PCBs flow. -
This unit is used for unloading of PCBs from the production line. -

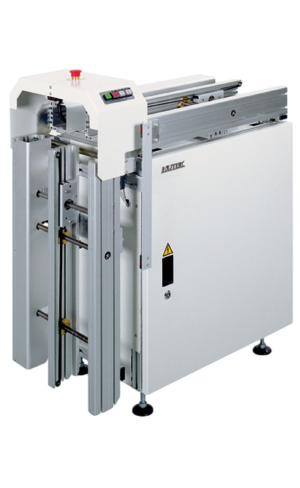

TThis unit is used when a passage way is required in a production line (semi automatic).
