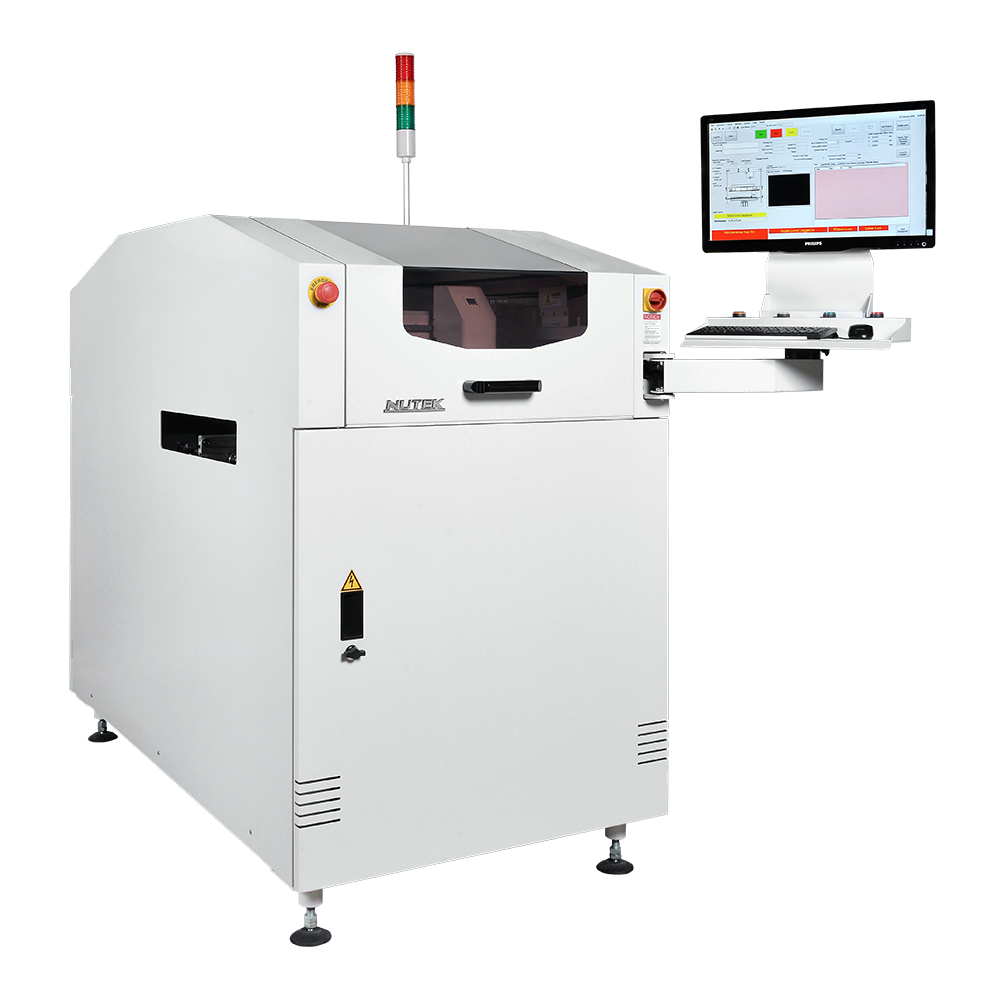

Barcode Labelling Cell Series 3

This unit is used to print, pick and apply labels onto bare PCBs or on top of components.



Features

  • Rigid machine frame with large access door
  • Integrated 600dpi Brady printer
  • ZebraDesigner 2 user licence
  • Slide out mechanism (rear side) for easy and fast label and ribbon replacement
  • Label placement programmable in 1° step
  • Vacuum sensing of label from pick-up to placement
  • Scanner for value verification after printing
  • Industrial PC & 21.5” LCD monitor
  • User friendly software
  • Automatic width adjustment conveyor
  • PCB side clamping
  • Active PCB support
  • Short product change-over time
  • Selectable by-pass operation
  • SMEMA compatible

Specification

Model No. Size

Machine Dimension (mm)


L x W x H

Fixed Point to Front

Dimension (X)

Weight


(Approximately)
NTM5710-X XL 850 x 1680 x 1440 mm 335 mm 750 kg
