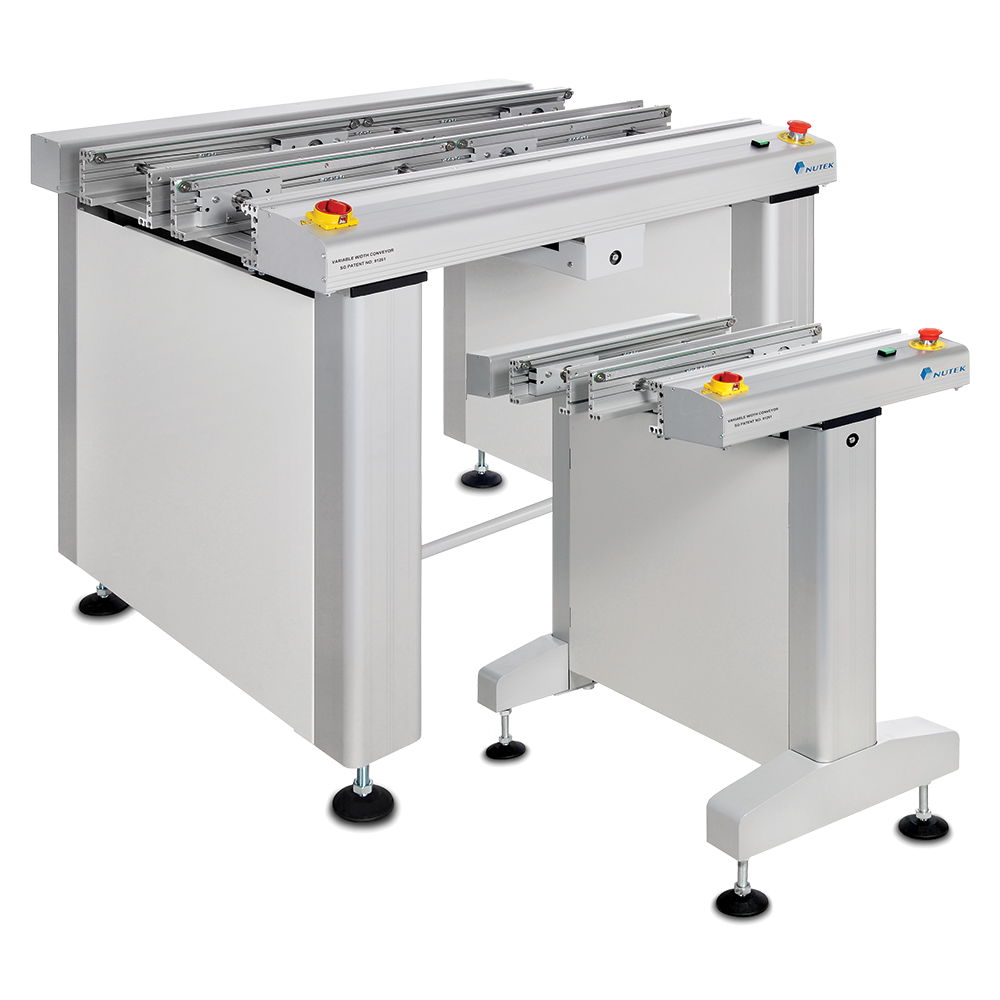

Dual Track Linking Conveyor (500 & 1000mm)
This unit is used to link between SMD machines or board handling units in dual track PCB assembly lines.
Features
- Modular design
- Stability enhanced by ‘robust design’
- Laser carved stainless steel side guides for superior quality and durability
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- Width adjustment for individual track can be independently controlled (optional)
- Inspection Mode (optional)
- Two independently controlled belt segment
- Multi-zone concept available upon request
- Different lengths available upon request
- SMEMA compatible
- Patented (SG Patent No.: 91261)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM0401DM-500-1 | M | 500 x 780 x 980 mm | 165 mm | 60 kg |
| NTM0401DM-1000-1 | L | 1000 x 780 x 980 mm | 165 mm | 110 kg |
