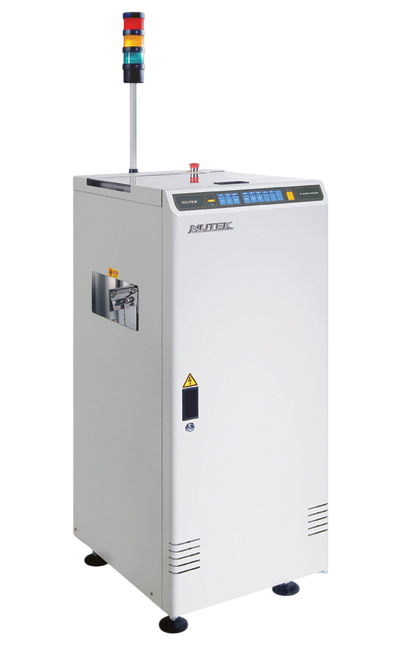

Bare Board Loader/with Pass Through Mode
This unit is used for loading of bare PCBs to the production line.
Features
- Surrounded with covers to provide highest level of safety
- Top safety cover can be opened for easy access to hardware during maintenance
- User friendly ‘soft touch’ LED membrane control panel
- Adjustable suction positions provide better grips of PCBs
- Smooth and parallel width adjustment
- Small machine footprint
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM0200-M | M | 500 x 730 x 1330 mm | 234 mm | 110 kg |
| NTM0200-L | L | 653 x 870 x 1330 mm | 234 mm | 140 kg |
| NTM0200PM (Pass through) | M | 500 x 730 x 1330 mm | 234 mm | 110 kg |
| NTM0200PL (Pass through) | L | 653 x 870 x 1330 mm | 234 mm | 140 kg |
