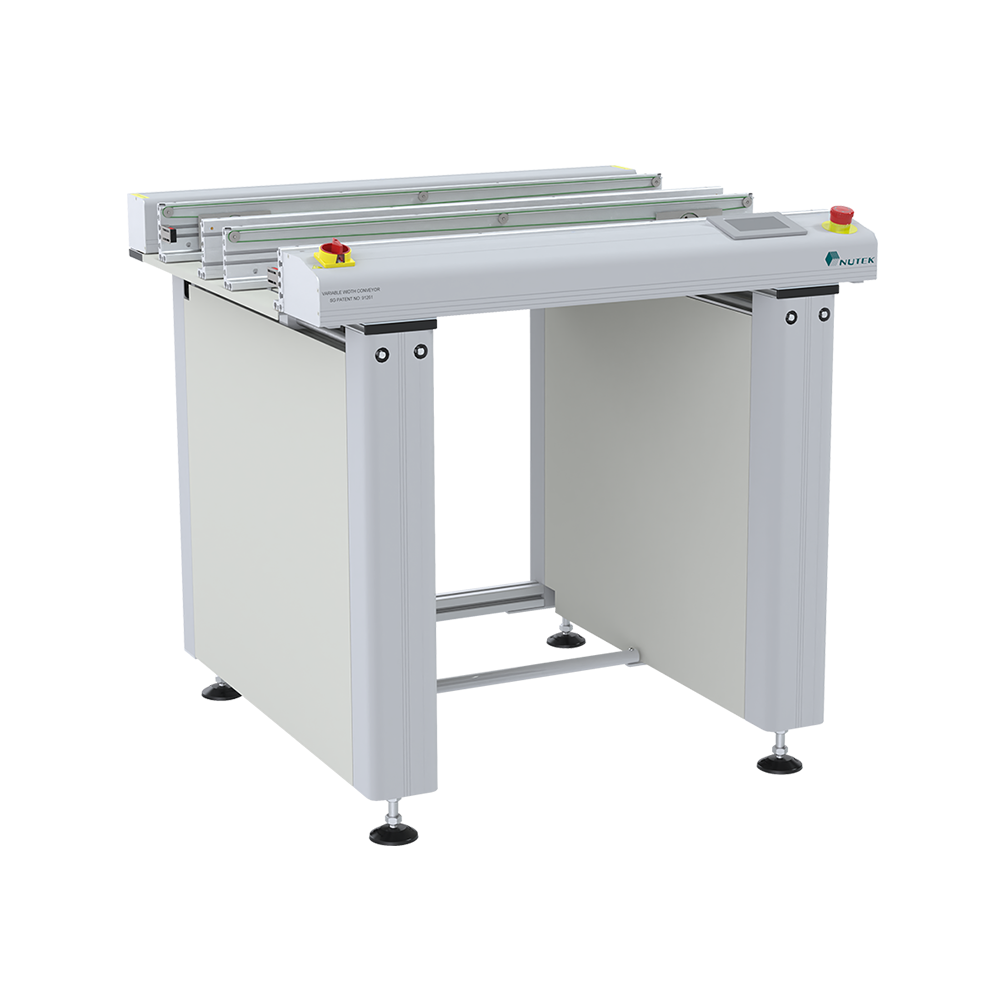

NTA Dual Track Linking Conveyor
The Dual Track Linking Conveyor is used to link between SMD machines or board handling unit in dual track assembly line.
Features
- 4.3” touchscreen panel
- Modular design
- Stability enhanced by ‘robust design’
- Laser carved stainless steel side guides for superior quality and durability
- Ergonomically designed arm rest
- Servo motor controlled conveyor width adjustment
- Multi-zone concept available upon request
- Different lengths available upon request
- Programmable product setting
- Patented (SG Patent No.: 91261)
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0410DT | M | 1000 x 930 x 980 mm | 165 mm | 90 kg |
