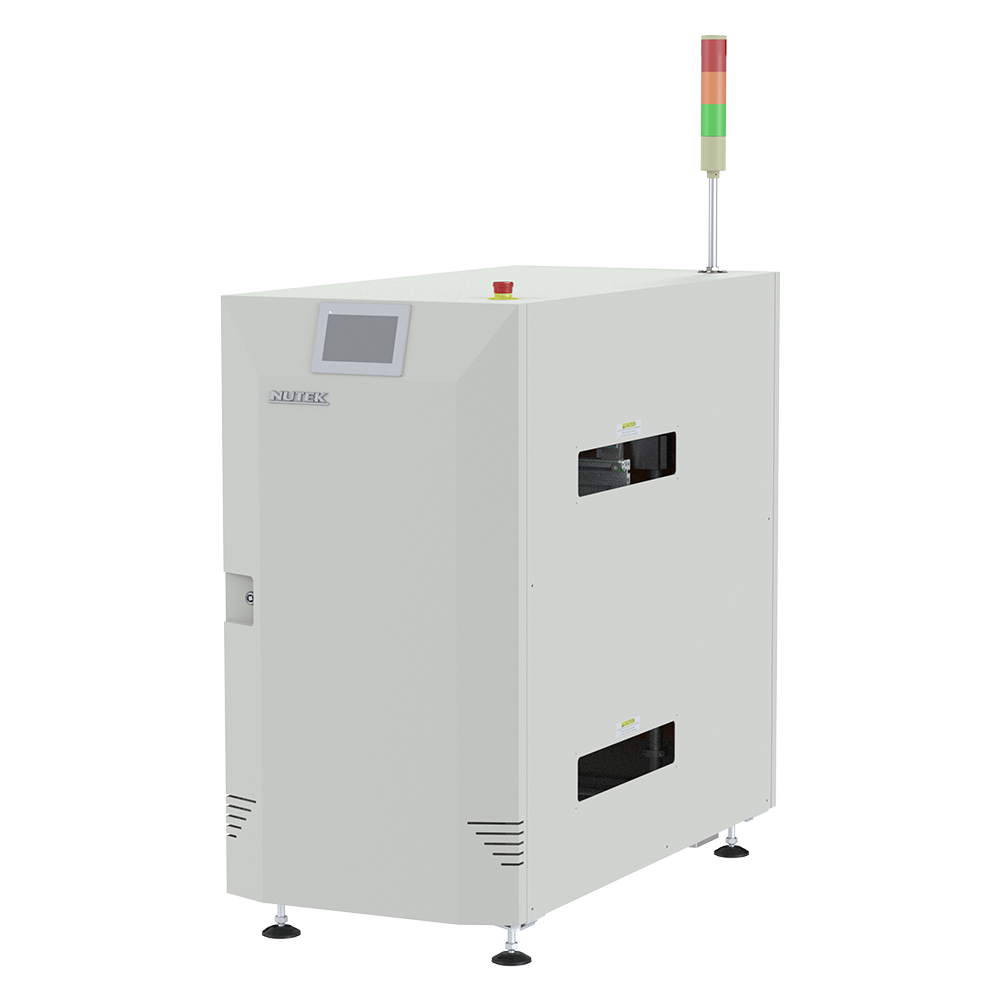

NTA Lifter
The NTA Lifter is used to redirect PCBs flow in a Dual layer production line. The lifter will lift or lower the conveyor according to upstream or downstream machine request.
Features
- 7” touchscreen panel
- Servo motor controlled width adjustment
- Frequency inverter controlled lifting motion
- Programmable product setting
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0340LM | M | 500 x 1175 x 1330 mm | 320 mm | 160 kg |
| NTA0340LXL | XL | 653 x 1385 x 1330 mm | 320 mm | 200 kg |
