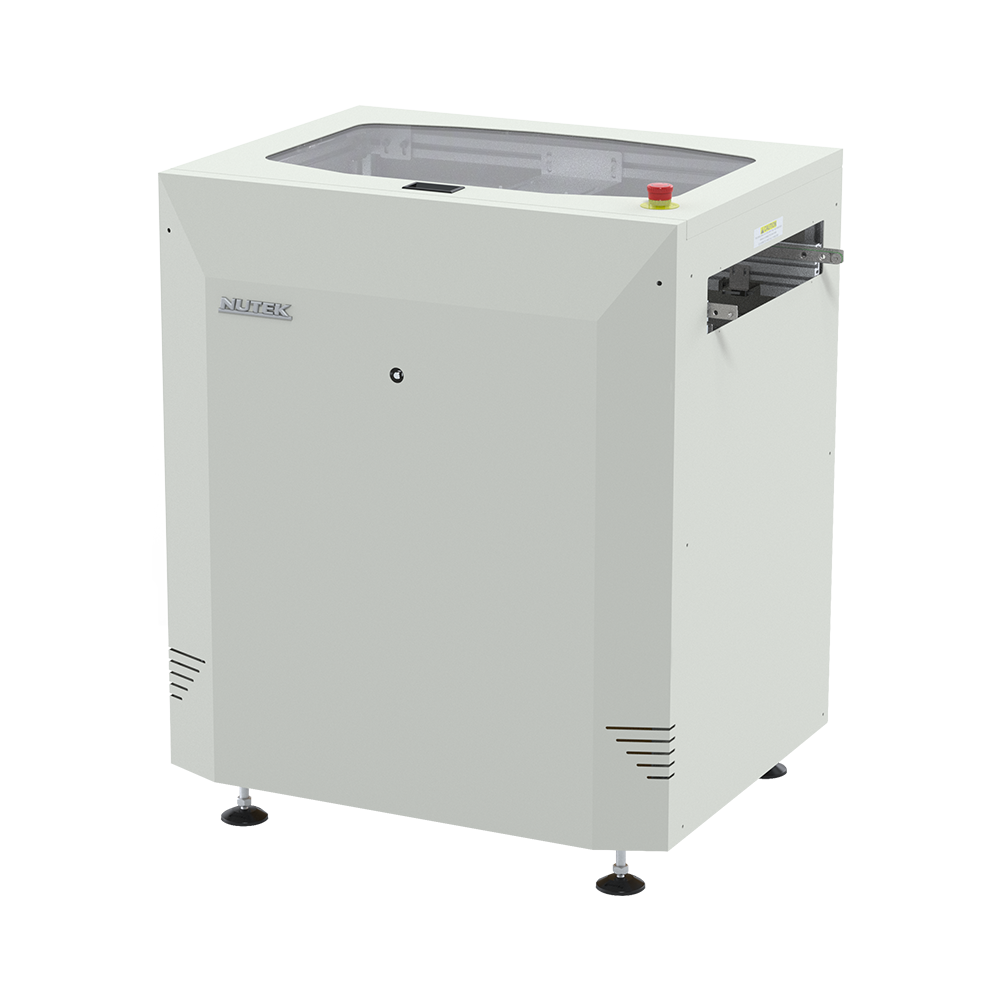

NTA Pusher Conveyor
The NTA Pusher Conveyor is linked to the Multi Magazine Unloader to receive PCB from upstream machine. The pusher will then push the PCB into the empty magazine slot in the Multi Magazine Unloader.
Features
- Controlled by Multi Magazine Line Unloader
- Manually adjustable pusher position
- Laser carved stainless steel side guide for superior quality and durability
- Pneumatic pusher’s pressure regulated
- Servo motor driven conveyor’s width adjustment
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0110PM | M | 755 x 590 x 1130 mm | 175 mm | 70 kg |
| NTA0110PXL | XL | 950 x 820 x 1130 mm | 175 mm | 100 kg |
