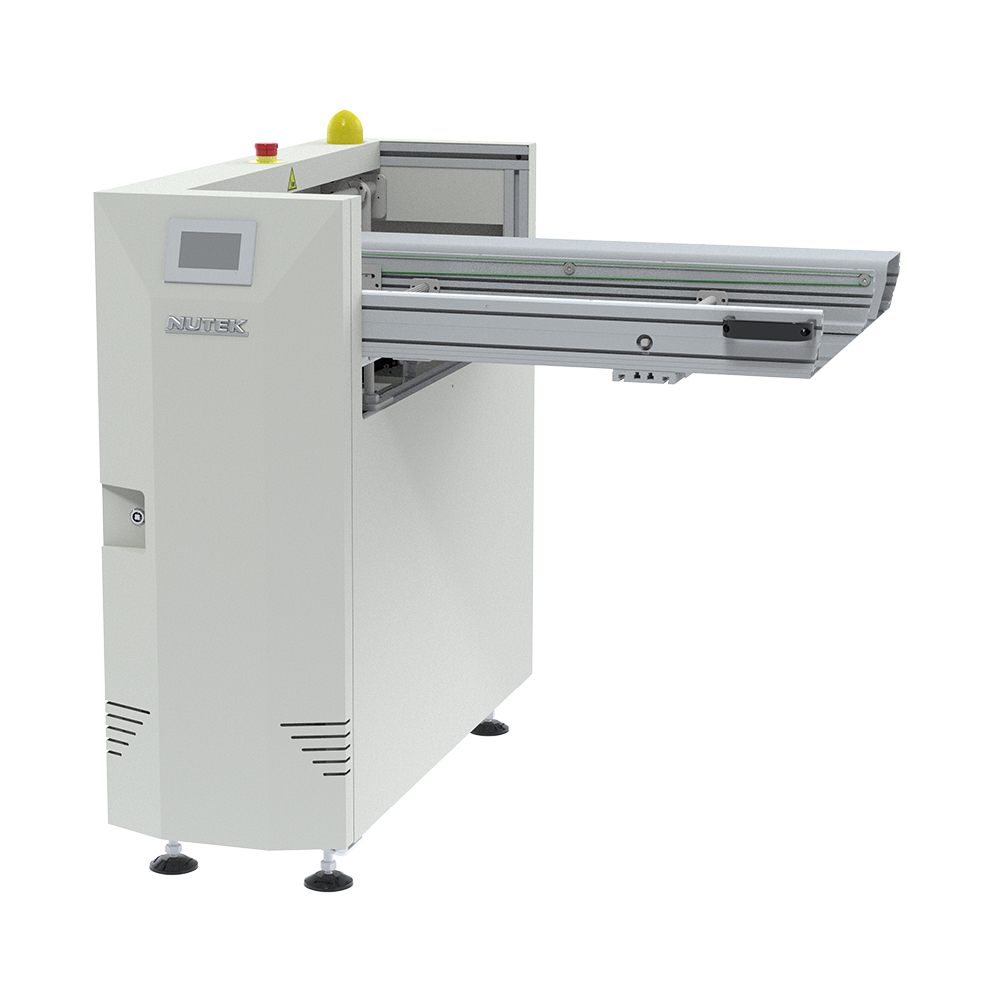

NTA Manual Gate Conveyor
The NTA Manual Gate Conveyor is used when a passage way is required in a production line. The conveyor can be lifted up to create a passage way to walk through.
Features
- 4.3” touchscreen panel
- 600 mm passage way or specify
- Cylinder assisted lifting motion
- Pneumatic locking device installed to enhance safety
- Servo motor controlled width adjustment
- Dome indicator light
- Programmable product setting
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0450MGM | M | 1000 x 995 x 1100 mm | 250 mm | 80 kg |
| NTA0450MGXL | XL | 1000 x 1195 x 1100 mm | 250 mm | 100 kg |
