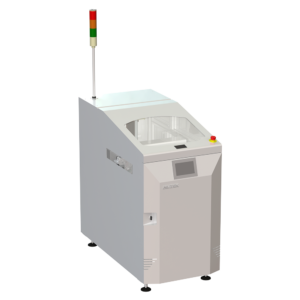

The NTA Push-Up Destacker is used to load bare PCB to downstream machine.

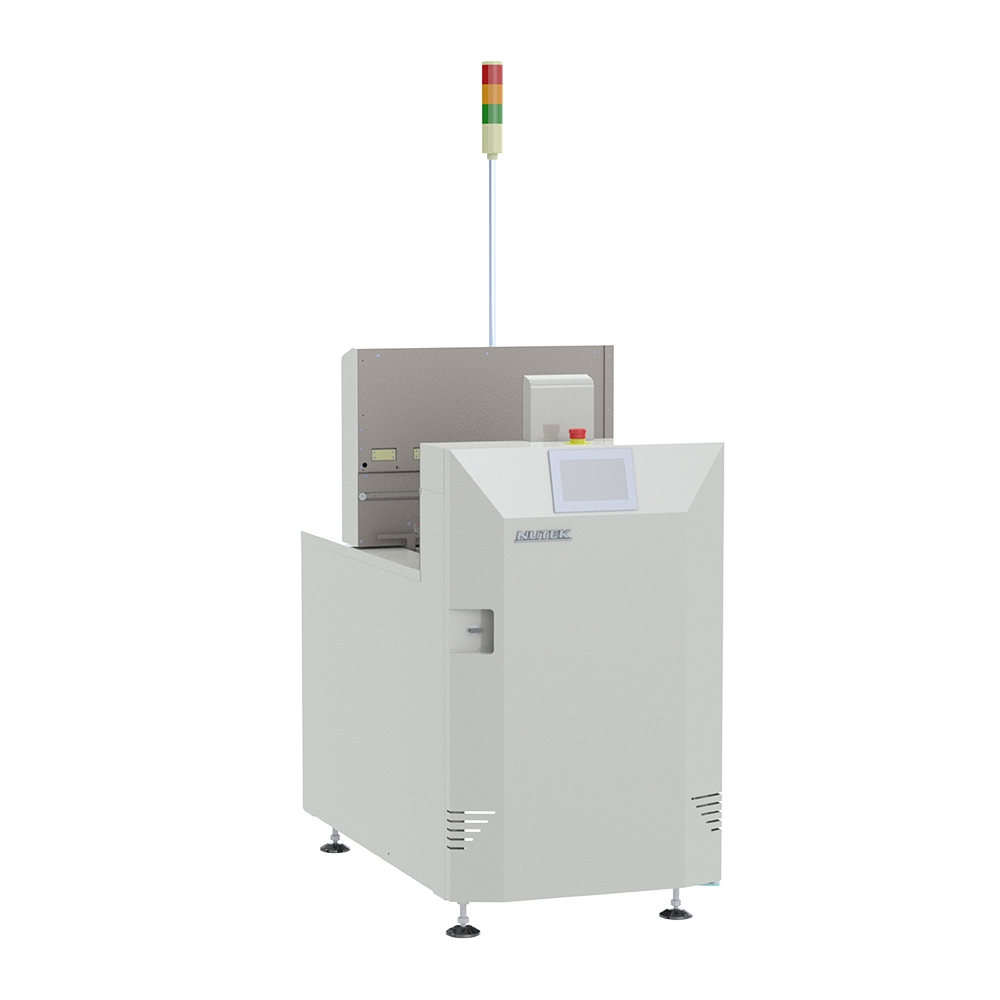

NTA Push-up Stacker
The NTA Push-up Stacker is used to stack up bare board after laser marking or labelling process. The conveyor receives PCB from upstream machine and then lifts it up into a stack.
Features
- 7” touchscreen display
- Uninterrupted unloading
- Pass through mode provided
- Servo motor controlled width adjustment
- Small machine footprint
- Pre-warning notification when PCB unloading area is almost full
- Programmable product setting
- Towerlight display for machine status
- Industry 4.0 ready
- OPC UA ready
- CANOpen communication ready
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTA0230PSM | M | 500 x 1180 x 1330 mm | 247 mm | 120 kg |
| NTA0230PSXL | XL | 653 x 1230 x 1330 mm | 247 mm | 180 kg |
Related Products
-
-

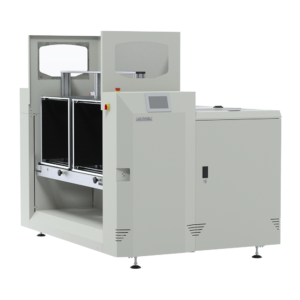

The NTA Dual Magazine Loader loads PCB from the full magazine to downstream machine. -

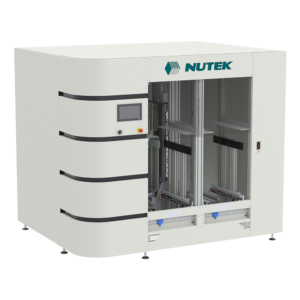

The Magazine Storage System is used to store magazines manually or by an AGV automatically -

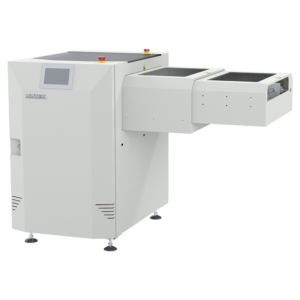

The NTA Telescopic Gate Conveyor (Normally Opened) is used when a passage way is required in a production line.
