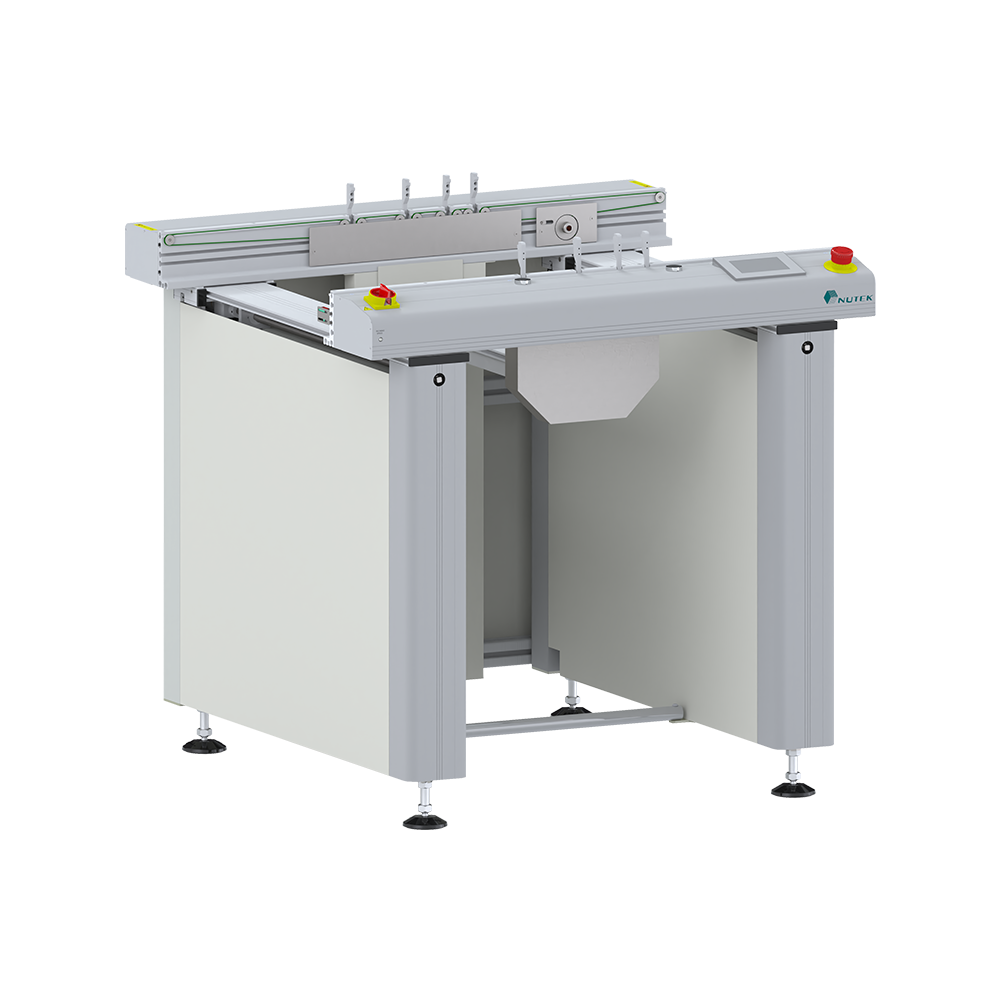

NTA Reject Inspection Conveyor

The NTA Reject Inspection Conveyor lifts up faulty board for visual inspection without interrupting the PCBs flow.



Features

  • 4.3” touchscreen panel
  • Includes ‘Reject’, ‘Check’ and ‘Bypass‘ modes
  • Modular design
  • Stability enhanced by ‘robust design’
  • Ergonomically designed arm rest
  • Servo motor controlled width adjustment
  • Multi-zone concept available upon request
  • Different lengths available upon request
  • Variable speed control
  • Programmable product setting
  • Industry 4.0 ready
  • OPC UA ready
  • CANOpen communication ready

Specification

Model No. Size

Machine Dimension (mm)


L x W x H

Fixed Point to Front

Dimension (X)

Weight


(Approximately)
NTA0510RCM M 1000 x 825 x 980 mm 165 mm 100 kg
NTA0510RCXL XL 1000 x 1030 x 980 mm 165 mm 120 kg
