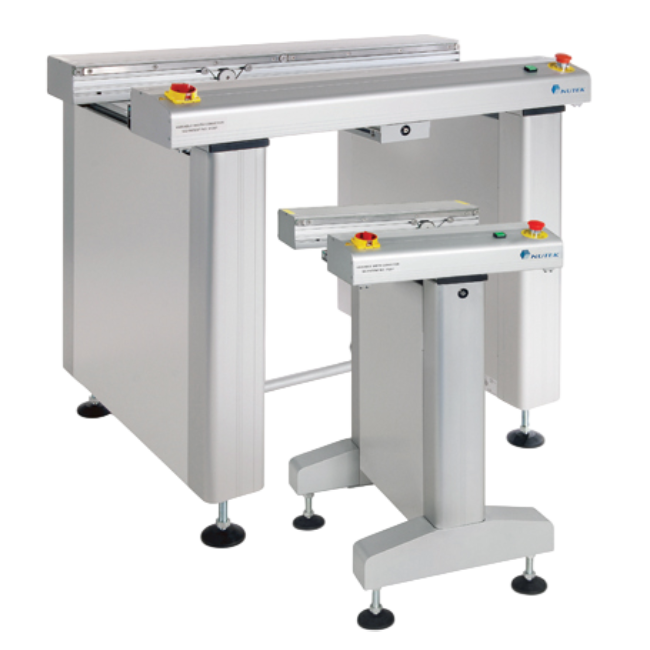

Linking Conveyor (500mm & 1000mm)
This unit is used to link between SMD machines or board handling units.
Features
- Modular design
- Stability enhanced by ‘robust design’
- Laser carved stainless steel side guides for superior quality and durability
- Ergonomically designed arm rest
- Smooth and parallel width adjustment
- Multi-zone concept available upon request
- Different lengths available upon request
- SMEMA compatible
- Patented (SG Patent No.: 91261)
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM0401-M-500 | M | 500 x 570 x 985 mm | 168 mm | 45 kg |
| NTM0401-L-500 | L | 500 x 727 x 985 mm | 168 mm | 50 kg |
| NTM0401-M-1000 | M | 1000 x 570 x 985 mm | 168 mm | 60 kg |
| NTM0401-L-1000 | L | 1000 x 727 x 985 mm | 168 mm | 70 kg |
