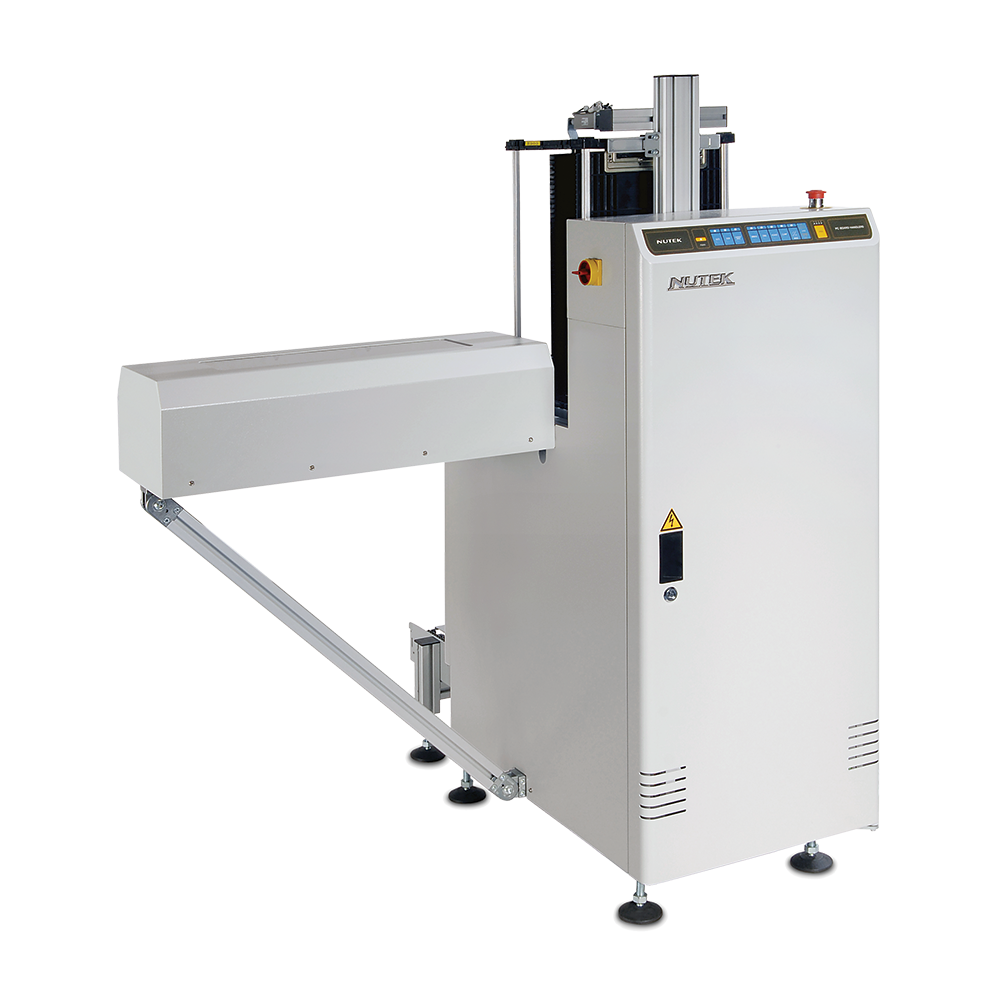

Single Magazine Loader
This unit is used for loading of PCBs to the production line.
Features
- User friendly ‘soft touch’ LED membrane control panel
- Pneumatic clamps provided for magazine alignment
- Pneumatic pusher with regulated pressure
- Adjustable pusher position
- SMEMA compatible
Specification
| Model No. | Size |
Machine Dimension (mm) L x W x H |
Fixed Point to Front Dimension (X) |
Weight (Approximately) |
| NTM0700LM | M | 1230 x 1170 x 1330 | 380 mm | 130 kg |
| NTM0700LL | L | 1515 x 1455 x 1330 | 380 mm | 180 kg |
