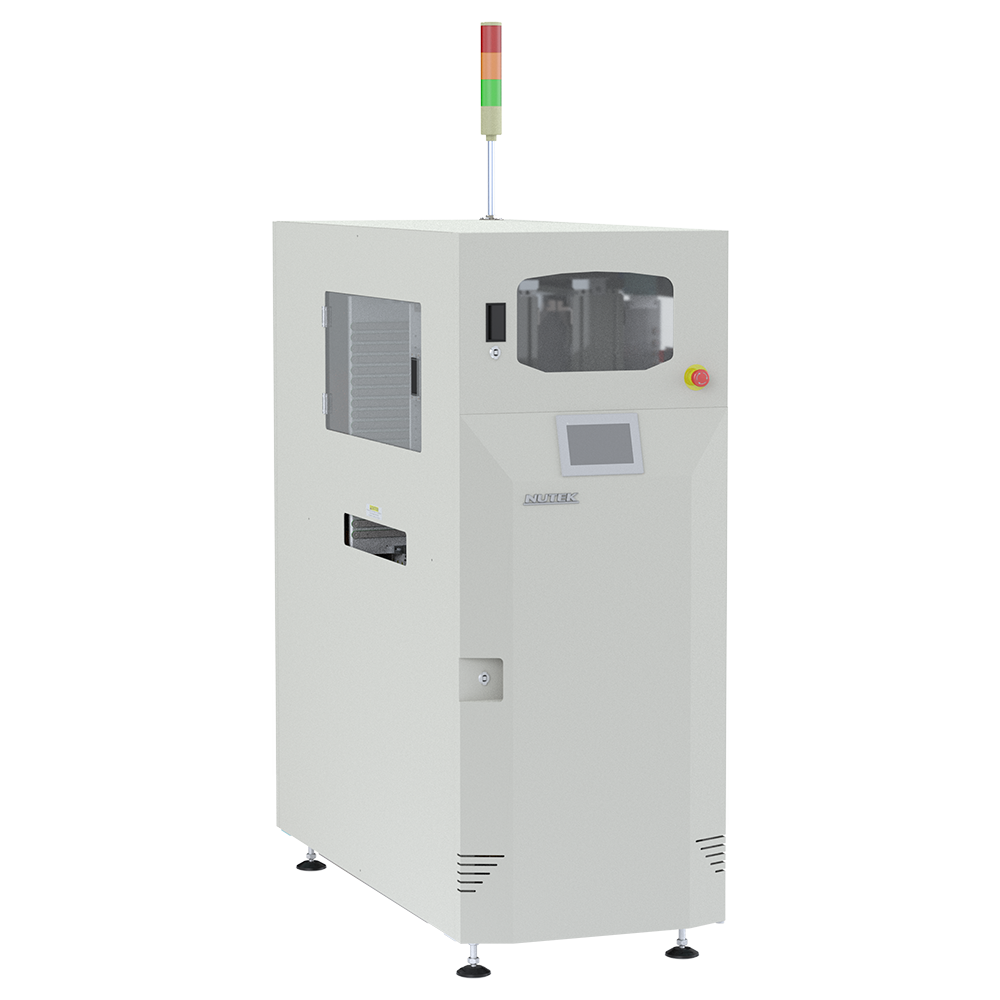

The NTA Multi Function Belt-type Buffer is used as a buffer to store PCB from upstream machine. It uses belt segments to hold PCB over its complete length. When adding or extracting a PCB to or from the Buffer, a drive mechanism engages with the belt segment to smoothly transfer the PCB in or out. It can operate in First In First Out (FIFO), Last In First Out (LIFO), Loader, Unloader and Bypass mode.

Features

• 7” touchscreen panel
• Towerlight display for machine status
• First In First Out (FIFO), Last In First Out (LIFO), loader, unloader and pass through operating modes
• Belt as conveying medium
• Oven Info threshold system provided
• Programmable cooling/curing timer to retain PCB in lifter before transferring downstream
• Servo motor controlled indexing
• Threshold system provided
• Servo motor controlled width adjustment
• Programmable product setting
• Industry 4.0 ready
• OPC UA ready
• CANOpen communication ready
